SIMULSAT 5B

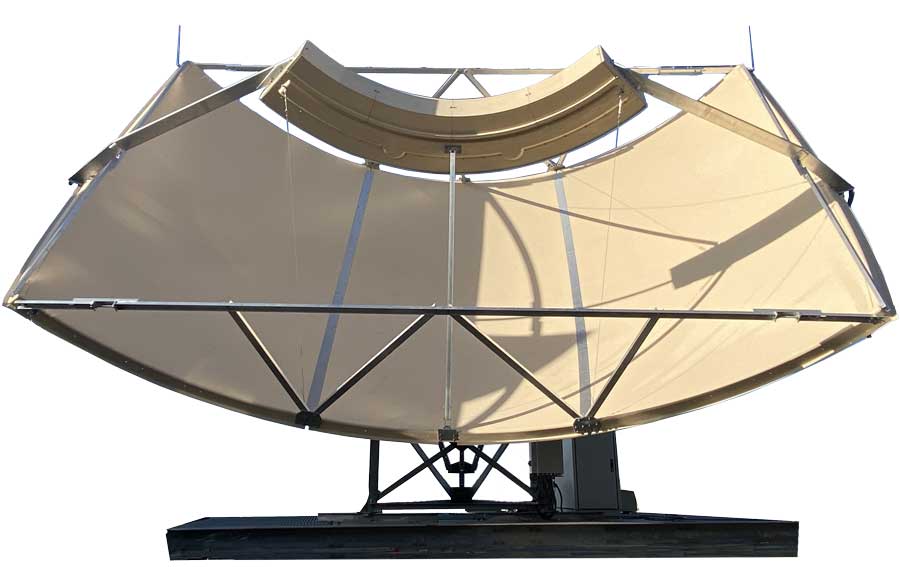

The Simulsat™ 5B Multibeam Earth Station is the world’s only antenna that can simultaneously receive signals from up to 35 satellites within a 70° view arc, with equal performance on each satellite. Since an increasing number of applications require multiple satellite reception, return on initial investment is immediate.
Features
• Market Leader in Multibeam Technology Since 1979
• One Antenna Performs Like 35 Parabolics
• Fixed Antenna With No Moving Parts to Service
• Commercial Quality Composite Construction
• Programming Movement: Due to Constant Satellite Programming Changes, Simulsat Users Can Add Another Feed Without Having to Purchase Another Antenna
• Receives, With Uniform Performance, Signals From All Satellites Within a 70 Degree View Arc.
Benefits
• Increased Revenue Stream
• Lowers Overall Costs – Return on Initial Investment is Immediate
• Requires Less Space – Simulsat is the size of 2 equivalent parabolics
• Curbs Real Estate Costs – Best Alternative to Antenna Farms
• Outperforms Retrofits – Simulsat receives, with uniform performance, signals from all satellites within a 70 degree view arc
Applications
• Broadcasters
• Cable Television
• Universities/Distance Learning
• Television and Radio
• Military/Government
• Corporations
Most Frequently Installed Model Worldwide. Standard and High Mount Available. C and Ku-Band Capability. Performs equivalent to 4.5 M. C-Band Prime Focus Parabolic Antennas. Receives, with uniform performance, signals from all satellites within a 70° view arc. Requires Less Space – Takes up the same space as 3 parking spaces..
ATCi's newly released Simulsat 4-Port is the most advanced feed design for the Simulsat line of multibeam antennas. This innovative design is narrow to allow for maximum flexibility in optimizing feeds for satellites spaced at 2° longitude, with no compromise in performance. The 4-Port Feed operates over the entire 'extended' C-band frequency range from 3.4 to 4.2 GHz, and also operates over the entire commercial Ku-band frequency range of 10.95 to 12.75 GHz. The 4-Port Feed includes mounting rack and two (2) each of C and Ku-Band PLL LNB's. The feed also accommodates bandpass filters to provide the utmost in secure operation.
ATCi’s Simulsat 2-Port is the most advanced feed design for the Simulsat line of multibeam antennas. This innovative design is narrow to allow for maximum flexibility in optimizing feeds for satellites spaced at 2° longitude, with no compromise in performance. The 2-Port Feed operates over the entire “extended” C-band frequency range from 3.4 to 4.2 GHz. The 2-Port Feed includes mounting rack and two C-Band PLL LNB’s. The feed also accommodates bandpass filters to provide the up most in secure operation.
Most Frequently asked Simulsat questions by customers and users.
